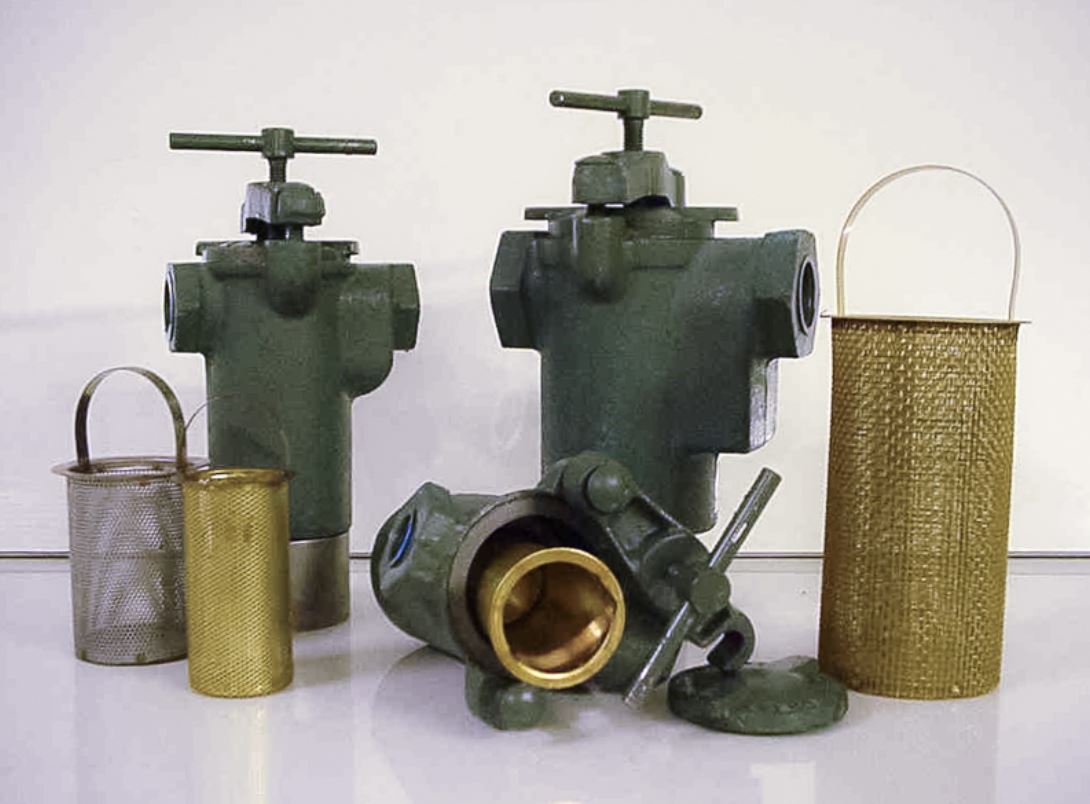

Cast Strainers - Simplex & Duplex
Our simplex strainers and filters provide a simple cost effective
way to separate particle impurities from fluid flow systems.
These units will protect pumps, nozzles, valves, heat
exchangers and other pipe line equipments from harmful flow
contamination by catching dirt and debris. Simplex strainers
are supplied with quick-opening hand-clamp closure for

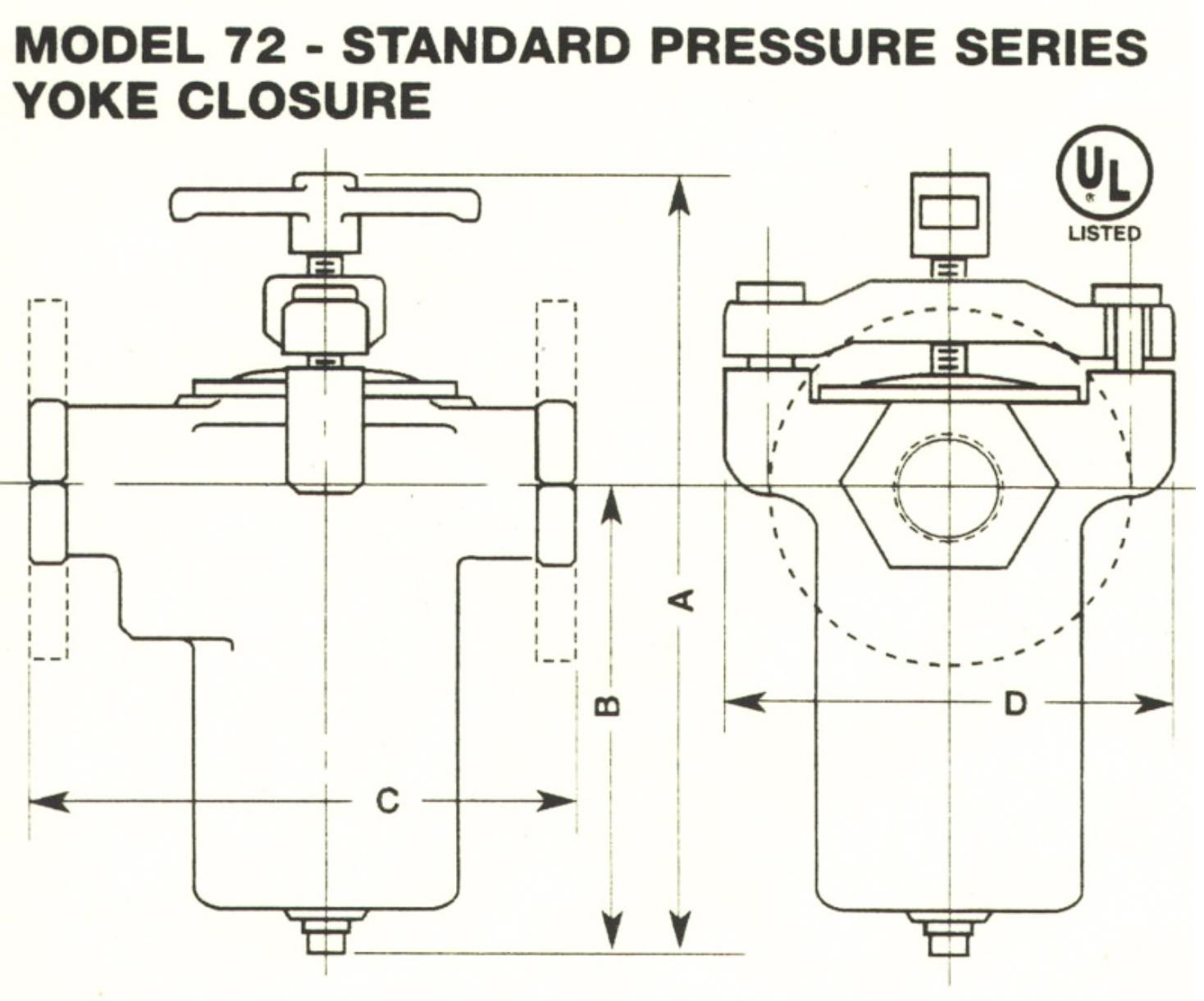

pressure up to 200 PSIG. Yoke closure permit easy access

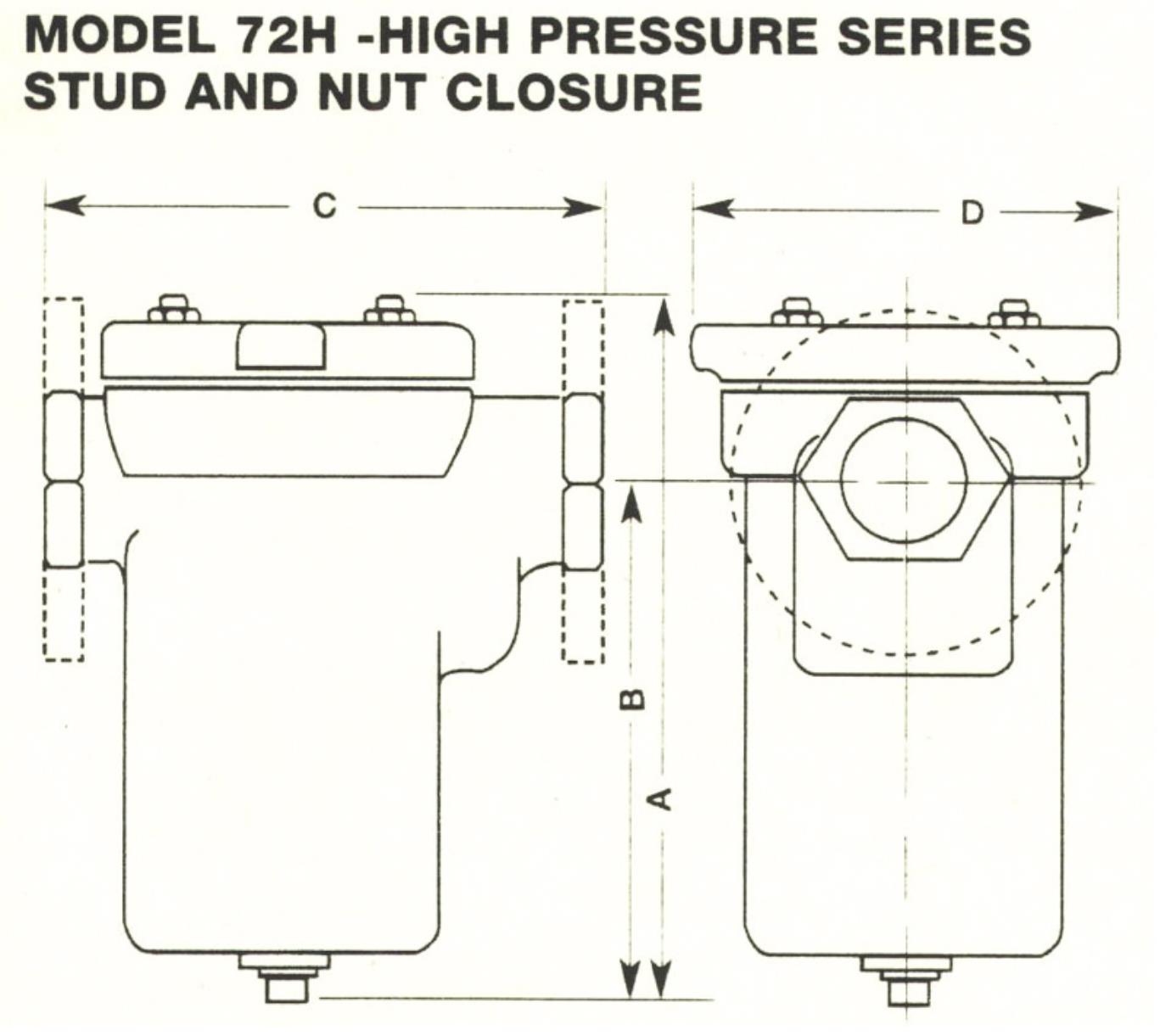

without use of tools. For higher pressure stud and nut covers
are also available. Baskets are made of perforated metal alloys
and all type of perforation in verity of metals are available.
Custom Strainers
Cast Basket Options
Single Elements Baskets

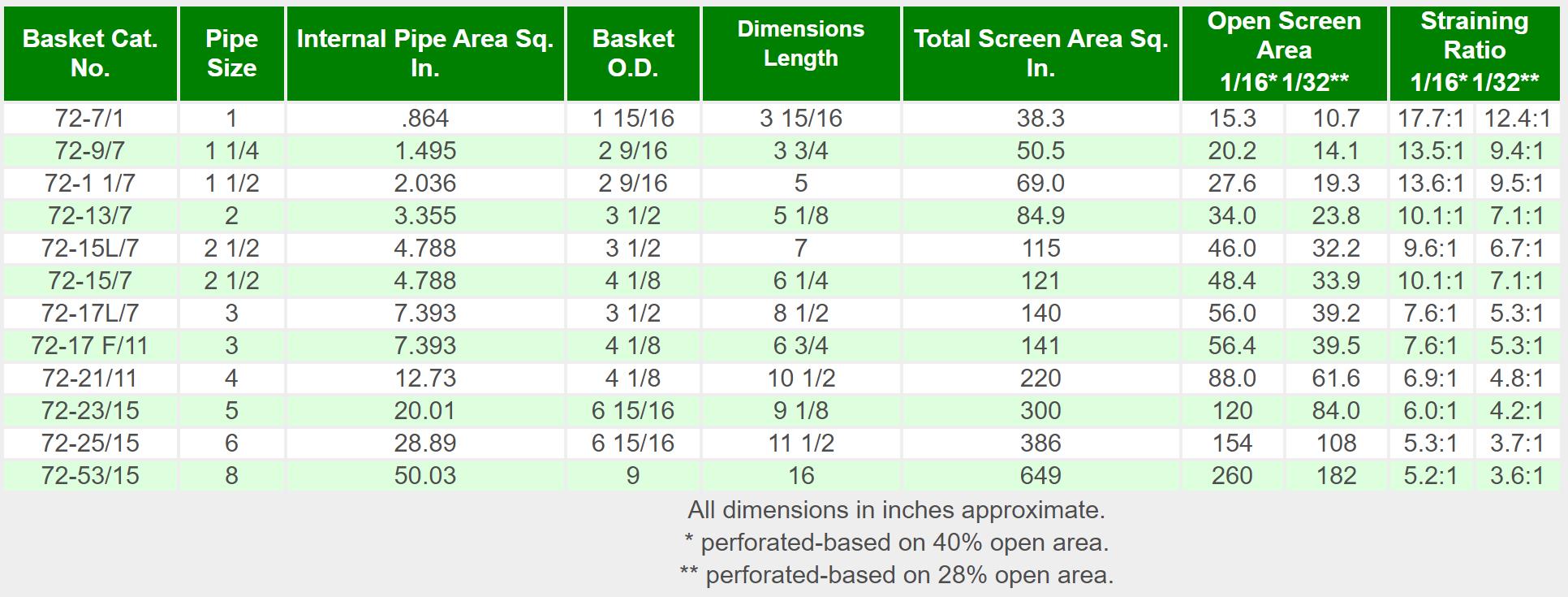

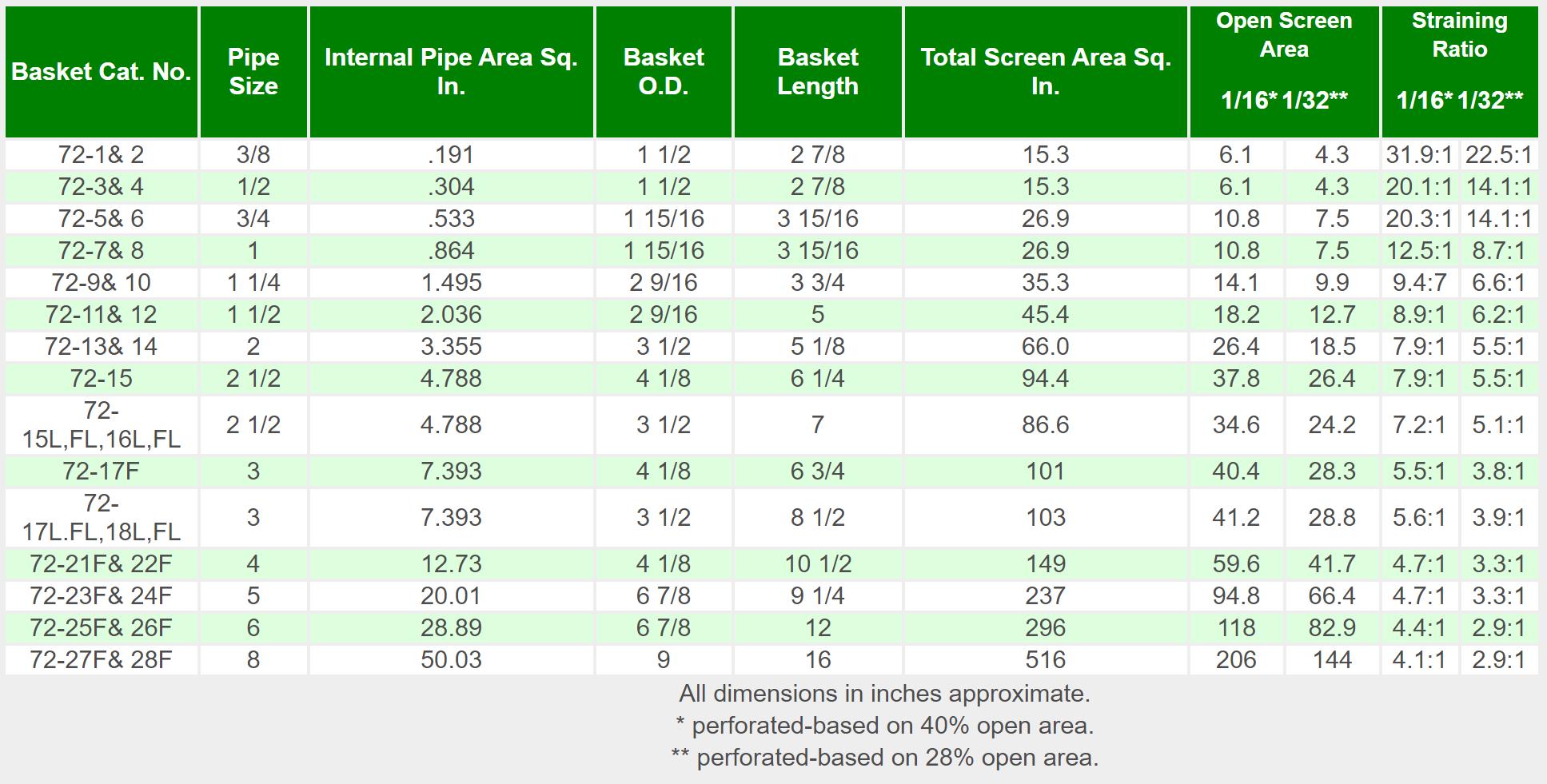

The open area ratios of two common perforated metal sizes are given in the accompanying table. strainer baskets are available in many
other standard perforations and meshes. Basket materials include brass, stainless steel, carbon steel, monel, and other special alloys.
Double Elements Baskets
